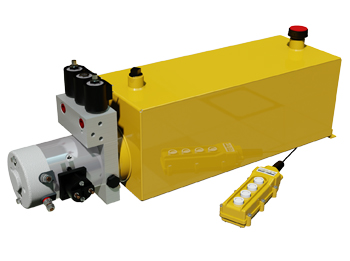

Power Unit - Model 04

TWO SINGLE ACTING CIRCUITS
This power unit has a double, single acting circuit, with two SAE#6 ports. It utilizes two 2 way, 2 position, solenoid activated valves, with manual overrides. This circuit design also uses a cartridge check and adjustable relief valve. The gear pump is equipped with a suction screen attached to a 90 elbow inside the tank wich comes with a ¾’’ NPT breather/distick.


Available Components

  • 1
    MOTOR
    DC 12 & 24v, or AC 115/230V, single phase
    AC 230/460/575V three phase
  • 2
    TANK
    From 1.7 to 23.6 Lts [0.45 to 6.24 Usgal]
    Plastic or Steel
  • 3
    MOUNTING
    Vertical or Horizontal

  • 4
    PUMP
    0.8, 1.0, 1.3, 1.6, 2.1, 2.5, 3.2 and 4.2cc

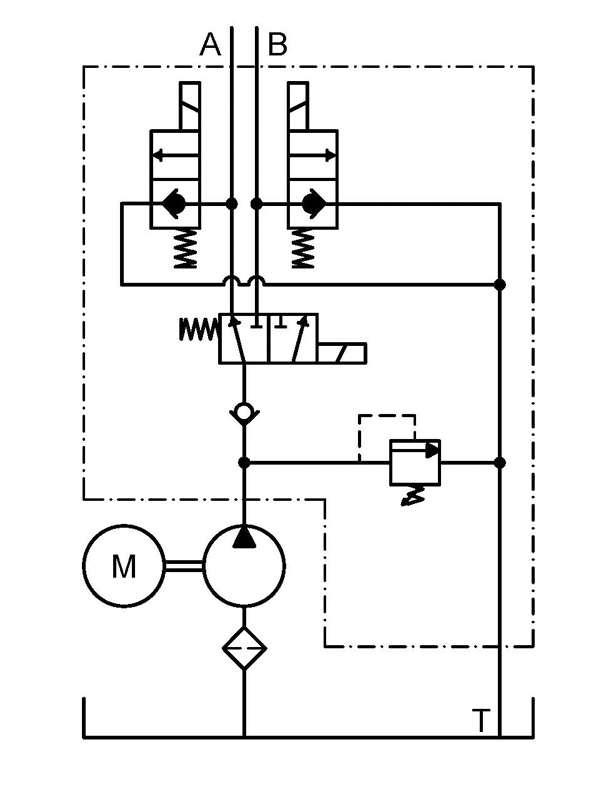

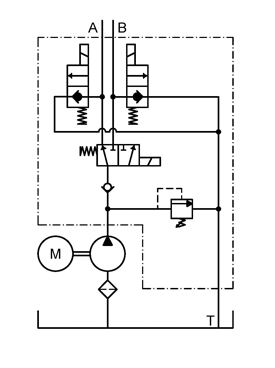

Hydraulic Schematic



Exploded View

ITEM PART NUMBER DESCRIPTION QTY
1 HAV EP1331 Motor Bolts 2
2 HAV EP1312A* Motor 1
3 HAV EP1040 Solenoid Bolt 2
4 HAV EP1041 Solenoid Washer 2
5 HAV EP1301A* Seolenoid 1
6 HAV EP1606 Block 1
7 HAV EP1602 CheckValve 1
8 HAV EP1601 Relief Valve 1
9 HAV EP1402 Pump/Motor Coupler 1
10 HAV P1033 Tank O-Ring 1
11 AS-568-012 O-Ring 1
12 HAV EP1722 Block Elbow 90° 1
13 HAV EP1210* Pump 1
14 HAV EP1217* Pump Bolts 2
15 HAV EP1218 Lockwasher (Pump Bolts) 2
16 HAV EP1004 Tank Bolts 4
17 HAV EP1005 Lockwasher (Tank Bolts) 4
18 HAV EP1401B Screen Filter Suction Elbow 1
19 HAV EP1020* Tank 1
20 HAV EP10034 Tank Plug 2
21 HAV EP1024 Breather 1
22 HAV EP1606-6 Block Adapter 1
23 HAV EP1101D Cartridge 2 Way, 2 Position 2
24 HAV EP1101G Cartridge 3 Way, 2 Position 1
25 HAV EP1101C-10* Coil 10v DC 3
26 HAV EP11116 Block Bolt M8 x 60mm 2
27 MFB03-ORING Block O-Ring 2
28 HAV EP1428-21 Remote Control 1

* items such as motor, pump, pump bolts, coils, solenoid and tank have different ordering part numbers depending on chosen option or model.


Typical Application

Car Lift
One Unit For Two Lifts

Dump Trailer
With Single Acting Front Jack

Scissors Lift Table
